FTIR Gas Analyser

MAX-iAQ

MAX-iAQ is a fully automated ambient air monitoring system designed for low-level detection of trace compounds, even in high humidity. It uses advanced FTIR technology for reliable, continuous monitoring with minimal maintenance.

Last updated: February 19, 2025

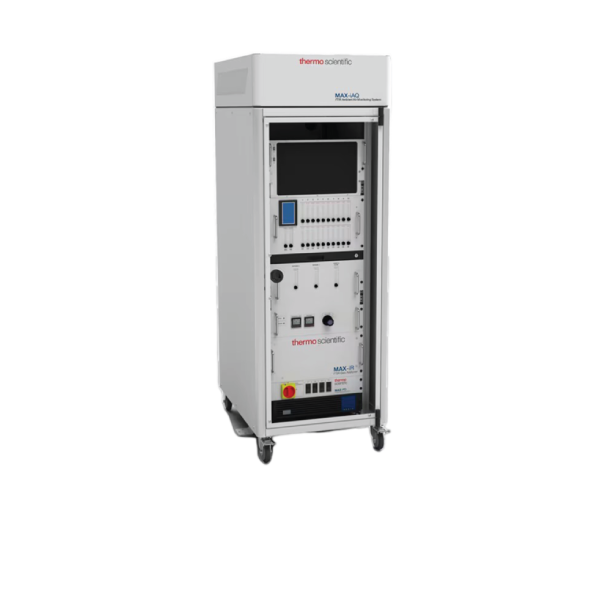

MAX-iAQ

Continuous Ambient Air Monitoring System for Low-Level Detection

The Thermo Scientific MAX-iAQ is a cutting-edge solution for ambient air quality monitoring that provides high sensitivity and reliability in detecting trace compounds, even in challenging environments with high humidity. Utilizing Fourier Transform Infrared (FTIR) technology, the MAX-iAQ system offers fast and accurate quantification of a wide range of compounds, including both organic and inorganic gases. Its advanced StarBoost Technology enhances its sensitivity, enabling the detection of compounds down to single-digit ppb levels, which makes it an ideal alternative to slower and more maintenance-intensive gas chromatography systems.

Engineered for continuous operation with minimal user interaction, the MAX-iAQ system can monitor up to 20 sample locations simultaneously, offering real-time data and dynamic alarming for seamless integration into existing workflows. The system’s temperature-controlled rack and integrated sample multiplexer ensure reliable sample flow across all channels. Whether deployed in industrial facilities, cleanrooms, or environmental monitoring applications, the MAX-iAQ is designed for long-term performance, requiring minimal maintenance over its 10+ year lifespan. It also features a user-friendly software suite for remote monitoring, sequencing, and data publishing.

Built to operate 24/7, the MAX-iAQ system offers easy setup with factory calibration, while allowing for additional calibration if needed. This robust system provides a complete, factory-ready solution for any ambient air monitoring need, supporting industries in ensuring environmental health and safety.

Your benefits

High Sensitivity: Detects trace compounds down to single-digit ppb using FTIR and StarBoost Technology.
Minimal Maintenance: Operates 24/7 for over 10 years with little maintenance.
Real-Time Monitoring: Dynamic alarming and remote monitoring for instant alerts.
Factory-Ready Solution: Includes a temperature-controlled rack, multiplexer, and user-friendly software for easy integration.
Versatile Across Industries: Ideal for environmental health, safety, and cleanroom monitoring.

Technical Specifications*
*Subject to change without notice
Multiplexer
Number of sample channels	20
Sample pump flow	4–10 L/min
Bypass pump flow	1–2 L/min on each channel
System response time	≤15-sec (based on 10L/min sample flow rate and 10-sec MAX-iR analyser measurement)
Time per channel	≤30-sec (includes 15-sec equilibration time) (based on 10L/min sample flow rate and 10-sec MAX-iR analyser measurement)
Time per sample cycle	≤ 10-min (20 channels)
Gas requirements
Purge gas	Nitrogen, ultra-high purity (UHP) grade or better, 20psig
Valve actuation gas	Nitrogen or clean dry air (CDA), 80psig (models with MAX-OXT only)
Facilities requirements	Indoor enclosure	Outdoor enclosure
Environmental temperature	15-30°C (59-86°F)	-40-50°C (-40-122°F)
Environmental humidity	10-90% RH, non-condensing	0-100% RH
Power	208-240VAC, 50-60Hz, 12A max	208-240VAC, 50-60Hz, 20A max
Dimensions (W x H x D)	651 x 1890 x 944 mm	1151 x 1912 x 976 mm
Factory integration
Data outputs
	Modbus TCP/IP
	8 Relay outputs (Form C)
	2 Analog outputs (4-20mA)
	4 Digital outputs (24V)
Data inputs	2 Analog inputs (4-20mA)
	Digital inputs (24 V) for remote start and stop
	2 Digital inputs (24V) for remote start and stop
