FTIR Gas Analyser
MAX-iR
MAX-iR FTIR Gas Analyser is an advanced solution for real-time gas analysis, delivering ultra-sensitive detection for process monitoring, gas purity certification, and batch sampling.
Last updated: February 19, 2025
MAX-iR
Ultra-Sensitive Real-Time FTIR Gas Analysis

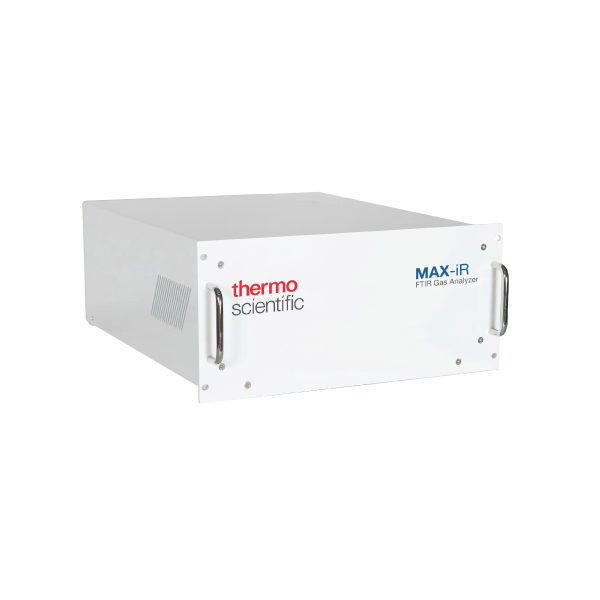

The Thermo Scientific MAX-iR FTIR Gas Analyser is engineered for high-performance gas analysis, offering real-time detection and ultra-low detection limits. Designed to handle a variety of applications, including inline process monitoring, gas purity certification, and batch sampling, the MAX-iR provides precise measurements with exceptional reliability. Leveraging StarBoost Enhanced Optical Technology, it enables single-digit ppb detection, with the potential to reach mid-ppt levels for ultra-high purity gases.
Built for efficiency and accuracy, the MAX-iR features a high-throughput multipass gas cell and a factory-calibrated FTIR spectrometer with up to 1 cm⁻¹ resolution. Its integrated temperature and pressure sensors ensure measurement consistency, even in demanding environments. The included MAX-Analytical STANDARD Software Suite automates data collection, reporting, and remote operation, enabling seamless integration into process control systems. With dual-level vibrational dampening and robust construction, the MAX-iR is ideal for both laboratory and field applications.
Your benefits
- Ultra-Sensitive Detection: Achieves single-digit ppb and even mid-ppt detection for ultra-high purity gas applications.
- Real-time gas analysis: Fast response times ranging from 1 second to 1 minute for dynamic monitoring.
- Automated efficiency: Features fully automated method control, data publishing, and remote operation.
- Robust and reliable: Designed with long-life laser and IR sources for maximum durability.
- Long-Life Components: Equipped with a VCSEL laser diode and SiC IR source for extended operational life with minimal maintenance.
| Technical Specifications* | *Subject to change without notice | |
|---|---|---|
| 19 x 24 x 8.75-inch rack mount | ||
| 75 lbs | ||
| 120/240 VAC 50/60 Hz | ||
| Integrated temperature & pressure sensors | ||
| Industry-leading FTIR spectrometer: ZnSe optics; VCSEL diode laser; SiC IR source | ||
| Environmental humidity: 10-90% RH, non-condensing | ||
| Environmental temperature: 20-30°C | ||
| Operating temperature: 5-191°C | ||
| Single 1/4” Swagelok™ input/ output | ||
| N2 purge port (usage optional) | ||
| 10 m pathlength - 0.5L volume standard | ||
