FTIR Gas Analyser
MAX-Bev
The MAX-Bev CO2 Purity Monitoring System is an advanced, fully automated solution for detecting trace impurities and ensuring absolute CO2 purity in carbonation streams, meeting the highest industry standards.
Last updated: February 19, 2025

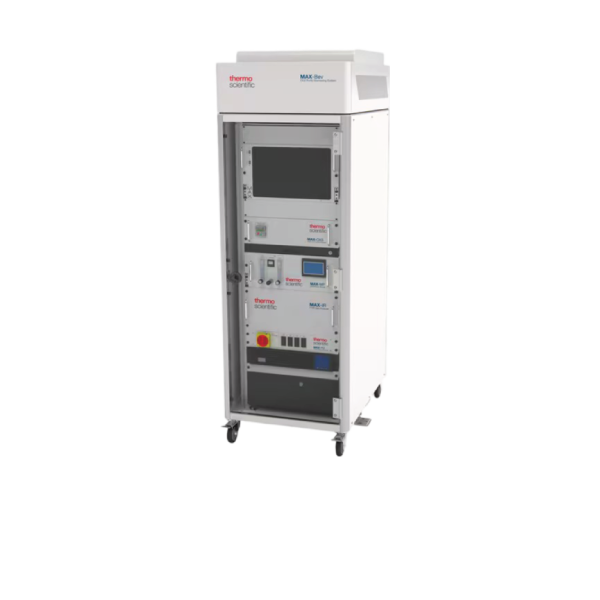

MAX-Bev
CO2 Purity and Impurity Detection System
The Thermo Scientific™ MAX-Bev™ CO₂ Purity Monitoring System is a cutting-edge solution designed for precise analysis of carbon dioxide (CO₂) used in beverage and industrial applications. Utilizing advanced Fourier Transform Infrared (FTIR) technology, this system measures trace impurities down to single-digit parts-per-billion (ppb) levels, while also providing absolute CO₂ purity measurement. Its high accuracy and automation eliminate the need for traditional wet chemistry methods, streamlining quality control processes.
The MAX-Bev system integrates seamlessly into carbonation processes, monitoring gas streams from various input sources such as delivery tankers and filtration points. It features an oxidizer module for sulfur impurity analysis, a robust touchscreen interface, and the Thermo Scientific™ MAX-Analytical™ Software Suite for full data control and compliance reporting. Designed to meet the strict standards of the International Society of Beverage Technologists (ISBT) and the European Industrial Gases Association (EIGA), the MAX-Bev CO₂ Purity Monitoring System is an essential tool for ensuring beverage-grade CO₂ quality with unmatched reliability.
Your benefits
- Precision CO₂ Purity Monitoring: Measures absolute CO₂ purity and detects over 20 impurities down to ppb levels.
- Automated Quality Assurance: Eliminates manual testing with full software control and automated sample flow management.
- Reliable Sulfur Detection: Converts and quantifies total reduced sulfur impurities more accurately than traditional methods.
- Seamless Integration: Supports common communication protocols for easy incorporation into existing plant systems.
- Comprehensive Reporting: Generates Certificates of Analysis (CoA) and maintains a historical database for traceability.
| Technical Specifications* | *Subject to change without notice | |
|---|---|---|
| Multiplexer | ||
| Number of sample channels | 10 | |
| Sample flow | 7 L/min | |
| Total analysis time | 10 minutes | |
| Gas requirements | ||
| Zero gas | Nitrogen, N3.0 or better, 80 psig | |
| Clean dry air | Clean dry air, filtered and free of H₂O and hydrocarbons, 80 psig | |
| CO₂ reference gas | Research grade (99.9999%) CO₂, 80 psig | |
| Impurities reference gas | Blend of 5 ppm COS, 10 ppm benzene and 75 ppm propane in N2 balance, 80-85 psig | |
| O₂ reference gas (optional) | 50 ppm O2 in N2 balance, 20–30 psig | |
| Facilities requirements | ||
| Environmental temperature range | 20–30°C | |
| Environmental relative humidity (RH) | 10–90% RH, non-condensing | |
| Power | 208–240 VAC, 50/60 Hz, 20 A circuit (4 A typical, 16 A max.) | |
| Dimensions (W x H x D) | 651 x 1952 x 944 mm | |
| Estimated weight | 180 kg | |
| Factory Integration | ||
| Data outputs | ||
| Modbus TCP/IP | ||
| Relay outputs (Form C) | ||
| Analog outputs (4–20 mA) | ||
| Digital outputs (24 V sourcing) | ||
| Data inputs | ||
| Modbus TCP/IP remote control | ||
| Analog inputs (4–20 mA) | ||
| Digital inputs (24 V) for remote start and stop | ||
| Thermocouple inputs (Type K) | ||
