FTIR Gas Analyser

MAX-EMS-10

MAX-EMS-10 is a fully automated FTIR-based system designed to accurately monitor emissions in compliance with EPA standards, ensuring reliable data for regulatory reporting and environmental protection.

Last updated: February 19, 2025

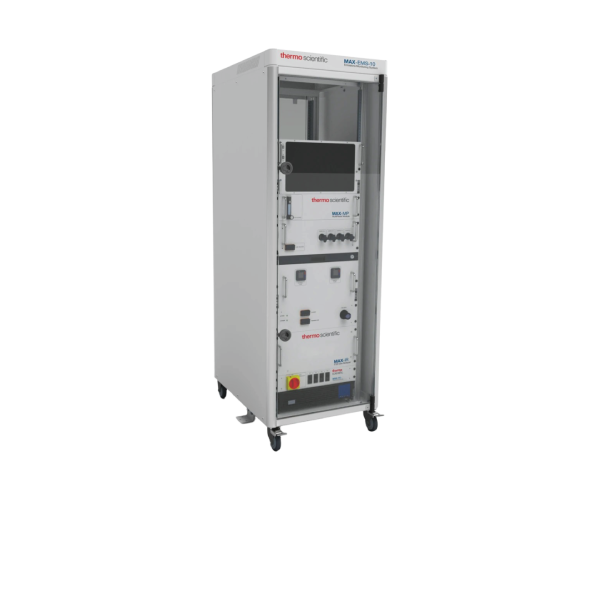

MAX-EMS-10

Advanced Emissions Monitoring System

The Thermo Scientific™ EMS-10 Continuous Emissions Monitoring System (CEMS) is a fully automated FTIR-based solution for monitoring emissions. It integrates the Thermo Scientific™ MAX-iR™ FTIR Gas Analyser, offering precise analysis of a wide range of gaseous compounds from percent concentrations to parts-per-billion (ppb). Designed to meet EPA standards, this system requires minimal user interaction while ensuring compliance for regulatory reporting.

With its modular design, the MAX-EMS-10 can be customized to fit specific applications and monitor up to four emission sources simultaneously using the optional four-channel multiplexer. Its ability to handle hot, wet samples up to 150°C makes it ideal for challenging industrial environments like combustion processes and thermal catalytic oxidizers.

The MAX-Analytical™ STANDARD Software Suite provides automated data analysis, reporting, and quality control through an intuitive touchscreen interface. Additionally, the MAX-EMS-10 offers seamless integration with facility control systems for efficient monitoring, proactive maintenance, and timely regulatory compliance.

Your benefits

Fully Automated Operation: Reduces manual intervention, ensuring consistent, high-quality data with minimal user input.
Compliance with EPA Standards: Meets stringent regulatory requirements for reliable emissions reporting.
Hot and Wet Sample Handling: Capable of analysing emissions from samples up to 150°C.
Multi-source Monitoring Capability: The optional four-channel multiplexer allows monitoring of up to four emission sources, ideal for process optimization and inlet/outlet monitoring.
Integrated Data Management: The MAX-Analytical™ software suite offers seamless data collection, analysis, and reporting, enhancing operational efficiency and compliance.

Technical Specifications*
*Subject to change without notice
Multiplexer
Number of sample channels	1 or 4
Sample pump flow	4–10 L/min
Bypass pump flow	1–2 L/min on each channel (four channel only)
System response time	≤15 s at 10 L/min
Gas requirements
Purge gas	Nitrogen, N3.0 or better, 30 psig
Valve actuation gas	Clean dry air (CDA) or nitrogen, 80 psig
Facilities requirements	Indoor enclosure	Outdoor enclosure
Environmental temperature range	20 to 30 °C	-20 to 50 °C
Environmental relative humidity (RH)	10–90% RH, non-condensing	No restriction
Power (Does not include heated sampling trains)	208–240 VAC, 60 Hz, 9.5 A max	208–240 VAC, 60 Hz, 21 A max
Dimensions (W x H x D)	651 x 1948 x 915 mm	1178 x 1912 x 985 mm
Estimated weight	230 kg	320 kg
Factory integration
Data outputs
	Modbus TCP
	Relay outputs (Form C)
	Analog outputs (4–20 mA)
	Digital outputs (24 V sourcing)
Data inputs
	Modbus TCP/IP remote contro
	Analog inputs (4–20 mA)
	Digital inputs (24 V) for remote start and stop
	Thermocouple inputs (Type K)
